4-Poster

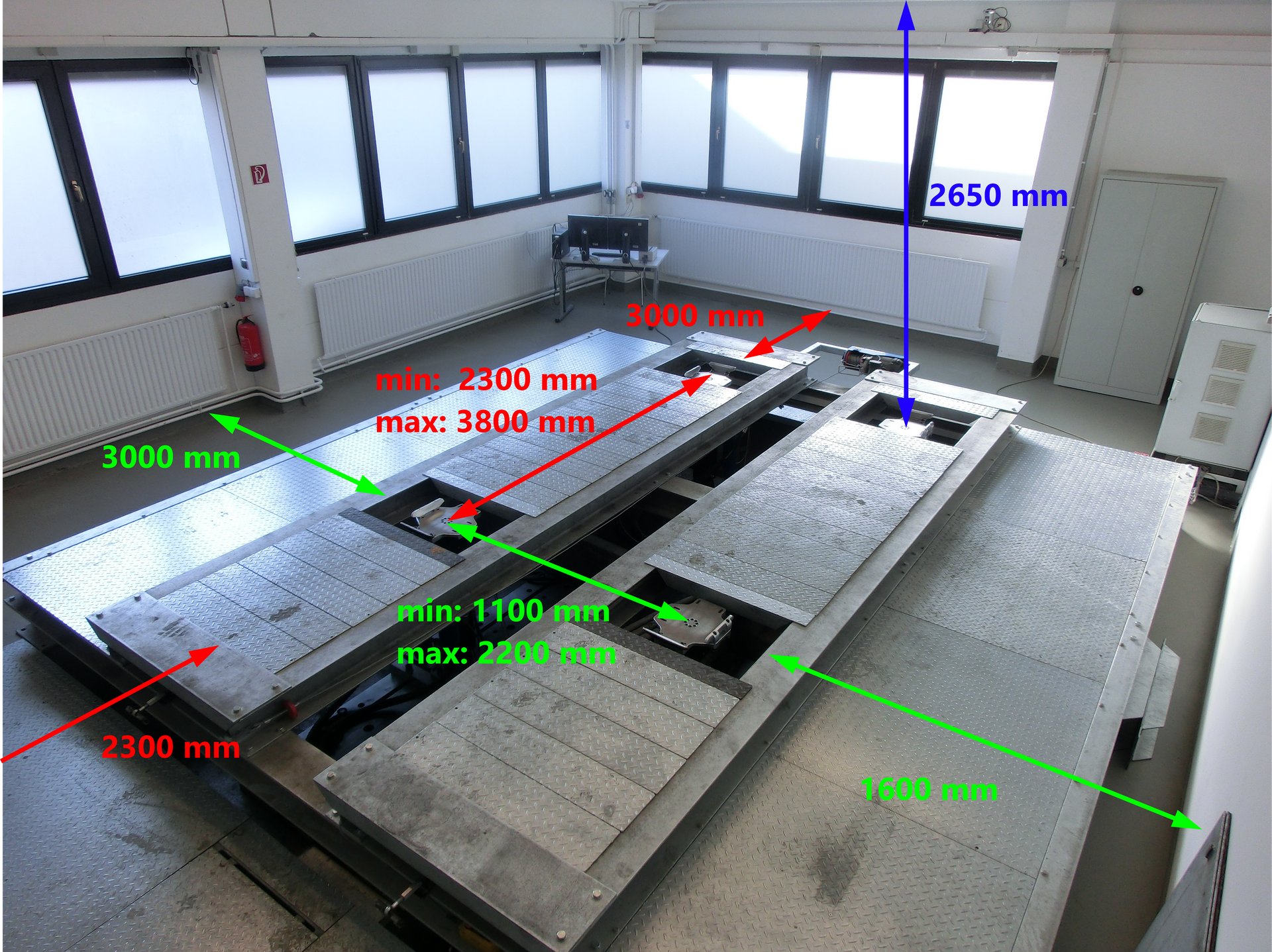

Complete vehicle tests can be conducted for vehicles up to 6 tons total weight, a maximum height of 2.50 meters, and a wheelbase of 1.80–3.80 meters. We also support component testing (sunroofs, doors, durability, etc.) as well as modal analyses of complete vehicles and components.
- Seismic mass: 95 t
- Air suspension with additional volume (0.8 Hz natural frequency)
- Maximum driveable load: 8 t
- Tinted windows
- Code-secured doors

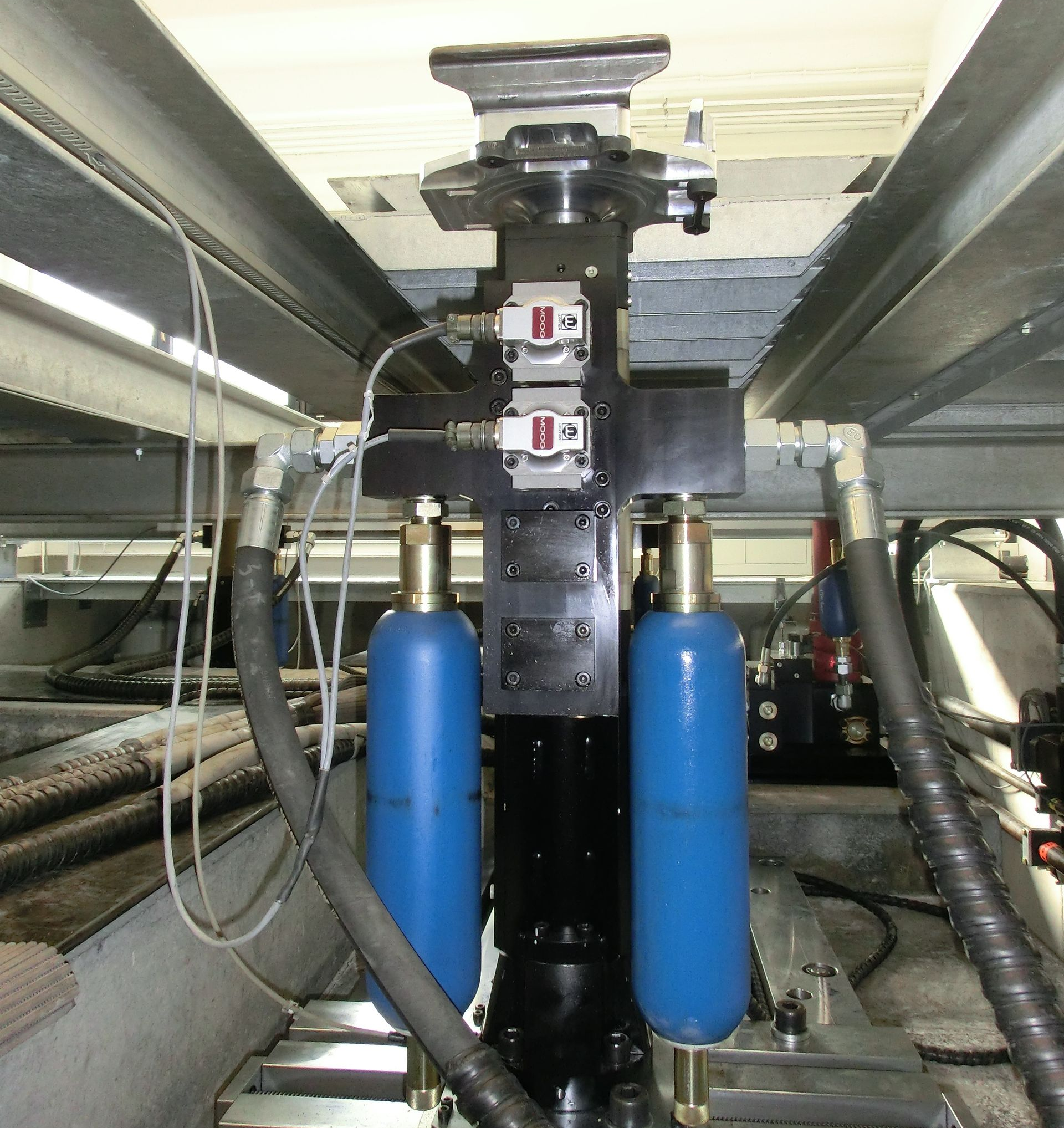

Cylinder
- System pressure: 280 bar
- Servo-hydraulic 40 kN cylinders
- Hydrostatic bearings
- Transverse force reinforced; 80 mm piston rod
- 250 mm useful stroke
- 2 x Moog 761 63 L servo valves
- Pressure accumulator: 3.5 L

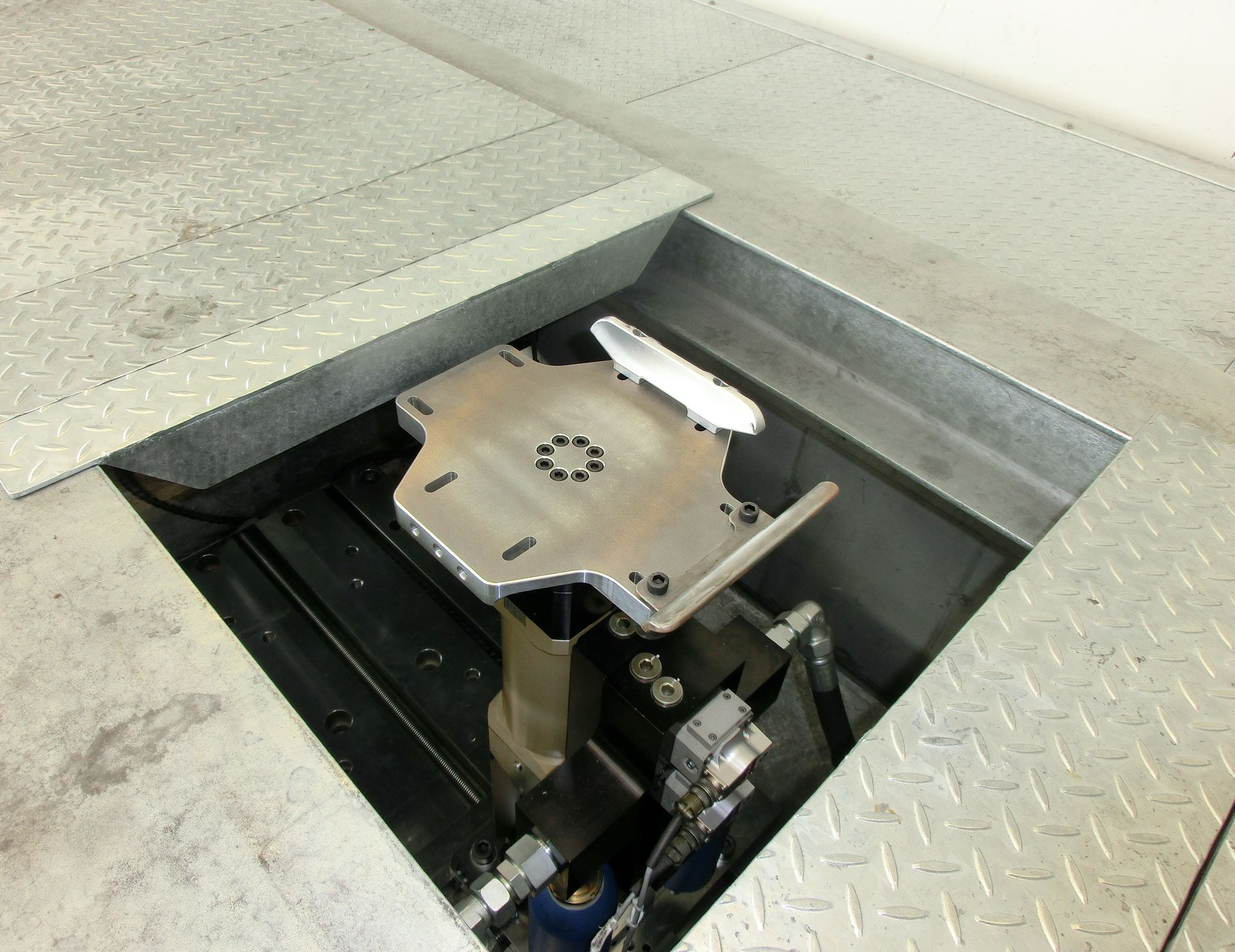

Wheele Plates
- High-strength aluminum
- Wheel diameter: 20″
- Wheel width: 340 mm
- Weight: 11 kg
- High-frequency capable
- High-strength aluminum
- Wheel diameter: 20″
- Wheel width: 225 mm
- Weight: 7 kg
- High-frequency capable
- Noise-optimized
- Steel
- Wheel diameter: 20″
- Wheel width: 350 mm
- Weight: 37 kg
- Heavy-duty
