• 6 × INOVA hydraulic cylinders, 30 kN each
• Transverse force reinforced with 80 mm piston rod
• Cylinder stroke: ±50 mm
• INOVA EU3000 control up to 10 kHz
• Frequency range: 1 Hz to 200 Hz
• Maximum acceleration (empty): X >10 g, Y >9 g, Z >15 g
• Maximum acceleration (loaded): depends on test specimen mass

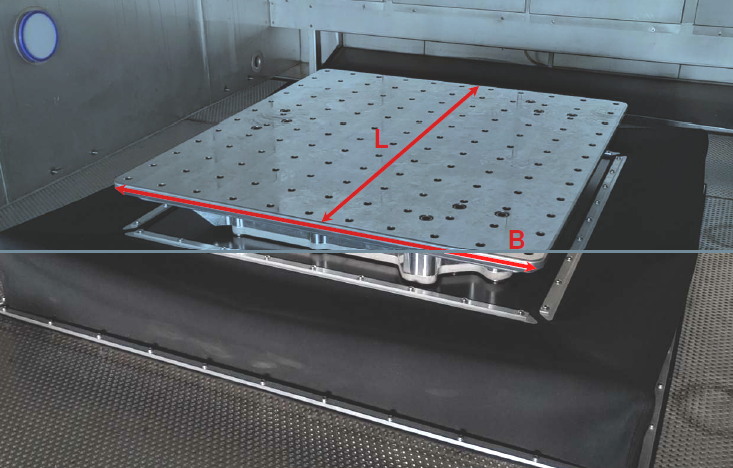

• High-Strength Aluminum Fixture Plate
• Natural frequency >300 Hz
• Thread: M16 × 2 with Helicoil
• Hole grid: 100 mm × 100 mm
• Dimensions: 1170 mm × 1070 mm (L × W)
• Clamping surface extendable via adapters

Max. table displacements:

• /- 84mm in X
• /- 92mm in Y
• /- 62mm in Z

Max. table rotations:

• /- 8.9° in Rx
• /- 6.5° in Ry
• /- 8.7° in Rz

• Environmental Test Chamber – CTS / Hechingen
• Volume: 17 m³
• Dimensions (L × W × H): 3.05 m × 2.6 m × 2.1 m
• Temperature range: -30°C to +85°C
• Humidity range: 10% to 95%
• Dew point range: +5°C to +78°C
• Heating rate: 0.5 K/min from -30°C to +70°C
• Cooling rate: 0.5 K/min from +80°C to -20°C
• Acoustic panels for noise analysis, deployable as needed
